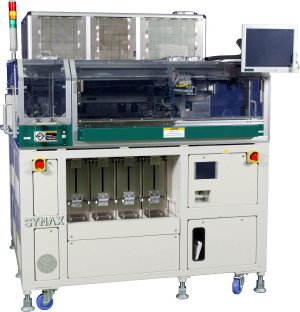

SX3600 Handler

Launching our latest product is the model - SX3600 handler. With improved technology and latest innovation, SYNAX has developed SX3600 to test 16 sites or more at room and high temp. In addition, with better stability and flexibility in socket layout, SX3600 offer customers a more efficient and cost effective solution that suits to most testing needs in todays' world.

Device Type : BGA, CSP, BCC, MLF, QFN, QFP
Device size : 3.0x3.0mm ~ 60x60mm (Optional : less than 3.0x3.0 package size)
Temp Range : Ambient ~ 130 deg C
Index Time : Less than 0.8 secs
Throughput : 12,000
Socket Layout : All types of socket layout (mm and inch pitch)
Contact Mode : 1 ~ 16ch (Optional : 32ch)

Available Features :
- Socket Temperature Control (STC)
- Loadcell control System
- Vision Alignment
- Multi Binning Module (Additional output trays)
